Product Description

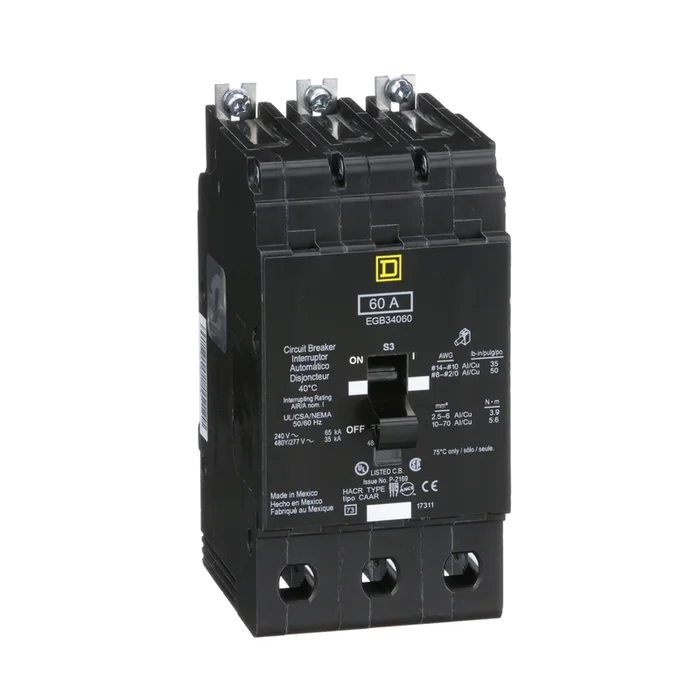

Square D EGB34060 is a miniature circuit breaker designed for use in NF panelboards. It operates at 480Y/277 volts and has a current rating of sixty amps. This device offers both overload and short circuit protection through a thermal-magnetic trip unit and features a signal indicator to show when a trip occurs.
- Rated for 480Y/277 VAC input.
- HACR and HID rated to support various applications.
- Three pole configuration with a hold current of 630 A.
Product Highlights
The Square D EGB34060 circuit breaker ensures reliable protection against overloads and short circuits in electrical systems. This breaker is essential for installations requiring robust protection and consistent performance.
Product Information
Standard Information
- Catalog Number: EGB34060
- Brand: Square D
Technical Specifications
- Voltage Rating: 480Y/277 VAC
- Amperage: 60 A
- Number of Poles: 3
- Trip Type: Thermal-magnetic
- Hold Current: 630 A
- Trip Current: 1800 A
- Dimensions: 2.94 inches (width) x 5.66 inches (height) x 4.05 inches (depth)
- Weight: 4 lb
- Mounting Type: Bolt-on
- Country of Origin: Mexico
