Product Description

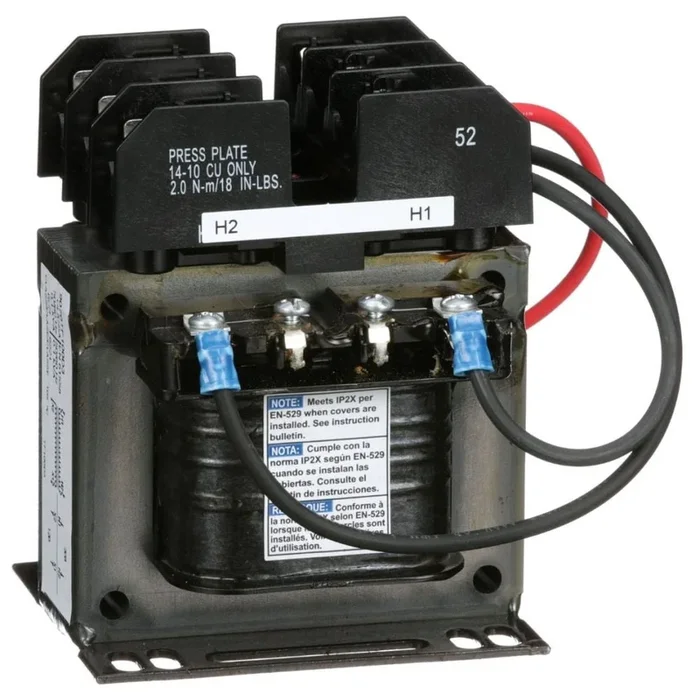

Square D 9070TF100D3 is a transformer control designed for 100 volt amp input and operates at 208 volts AC to 120 volts AC. This transformer is suitable for various commercial and industrial applications. It meets several safety and quality standards, making it reliable for heavy-duty tasks.
- Power Rating: 100 VA
- Dimensions: 3.38 inches width, 3.34 inches depth, and 4.18 inches height
- UL, CSA, CUL, CE, and NOM approved
Product Highlights
This transformer is designed with screw clamp terminals and is compliant with EN 60742/01.89 standards. It is built for a temperature rise of up to 55 degrees Celsius and features a copper winding material.
Product Information
Standard Information
- Manufacturer: Square D Co.
- UPC: 78590190576
Technical Specifications
- Model: 9070TF
- Primary Voltage: 208 V
- Secondary Voltage: 120 V
- Frequency Rating: 50/60 Hz
- Size: 3.38 inches W x 3.34 inches D x 4.25 inches H
- Temperature Rise: 55 Deg C
- Mounting: 0.48 inch L x 0.2 inch W Slot
- Insulation Class: 105
