Product Description

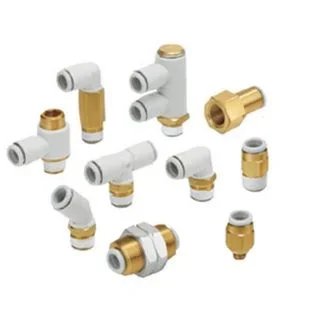

The SMC KQ2LU04-01AS is a one-touch fitting designed for use with metric size tubes and various connection threads including M and R. This fitting offers convenience and reliability for various pneumatic applications.
- Compatible with various tube materials including FEP, PFA, nylon, and polyurethane
- Operating pressure range from minus one hundred kPa to one MPa
- Features a release collar for easy tubing removal without damage
Product Highlights
This fitting is suitable for air and water transport. It is ideal for production lines and assembly operations where quick tube connections are required.
Product Information
Standard Information
- Manufacturer: SMC
- Part Number: KQ2LU04-01AS
Technical Specifications
- Model: LU (Branch Union Elbow)
- Applicable Tubing O.D.: 4 mm
- Material Surface Threaded Portion: Brass
- Fitting Shape: 90° Elbow
- Operating Temperature Range: minus five to sixty degrees Celsius
- Overall Length: thirty-one point one mm
- Hex Size: eleven mm
