Product Description

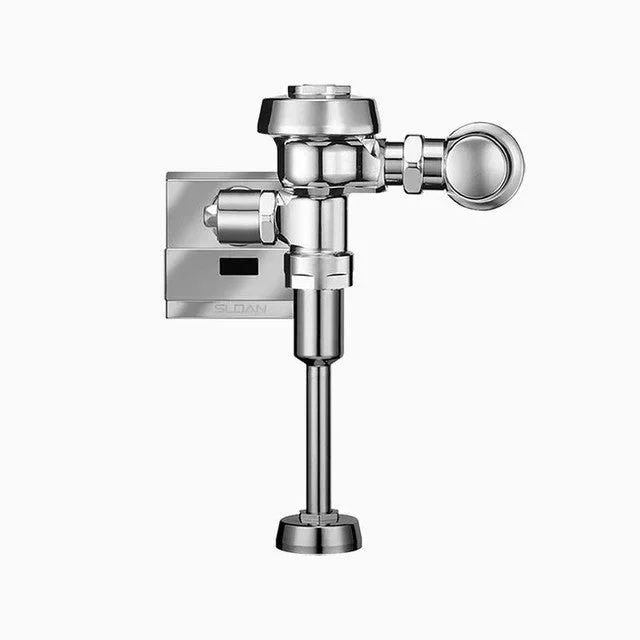

The Sloan Royal 186-0.5 ESS is a sensor-activated flushometer designed for urinal fixtures. This model features a 0.5 gallons per flush rate and comes equipped with a diaphragm valve design. The unit has a three-quarter inch IPS inlet and a three-quarter inch spud coupling, suitable for rough-in installations up to eleven and one-half inches.
- Sensor range of 15 to 30 inches
- Pressure rating between 15 to 80 psi
- Constructed from semi-red brass with a polished chrome finish
Product Highlights
This flushometer incorporates advanced technology for efficient water usage and features an OPTIMA EL-1500 sensor for smooth operation.
Product Information
Standard Information
- Brand: Sloan Valve Co
- MPN: 3452674
Technical Specifications
- Connection Location: Top
- Fixture Type: Urinal
- Valve Design: Diaphragm
- Material: Semi-Red Brass
- Finish/Color: Polished Chrome
- Flush Rate: 0.5 gpf
- Inlet Size: 3/4 inches IPS
- Rough-In Size: 11-1/2 inches
- Sensor Range: 15 to 30 inches
- Series: 186 ESS
- Spud Coupling: 3/4 inches
- Operating Mechanism: Single-Flush
