Product Description

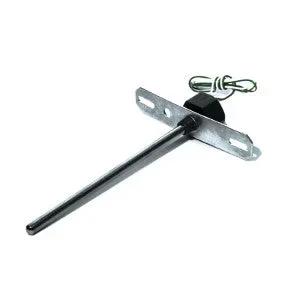

The Schneider Electric ETD800-NE-4 is a reliable temperature sensor designed for HVAC applications. This sensor is suitable for use in duct systems and provides accurate readings over a wide temperature range.
- Single point measurement for 4 duct.
- Accuracy level of +/- 0.2 C from 0 C to 70 C.
- Compatible with I/A systems.
Product Highlights
This temperature sensor features a 10K ohm thermistor with an 11K shunt, ensuring accurate readings. The operational temperature range spans from -40 F to 302 F, making it suitable for various environments.
Product Information
Standard Information
- Brand: Schneider Electric
- Type of Measurement: Temperature
Technical Specifications
- MPN: ETD800-NE-4
- Operating Temperature: -40 F to 302 F
- Accuracy: +/- 0.2 C
- Sensor Type: 10K ohm thermistor w/11K shunt
- Width: 54 mm
- Height: 102 mm
- Depth: 43 mm
- Relative Humidity Range: 0-90 % RH, non-condensing
Reviews
There are no reviews yet.
