Product Description

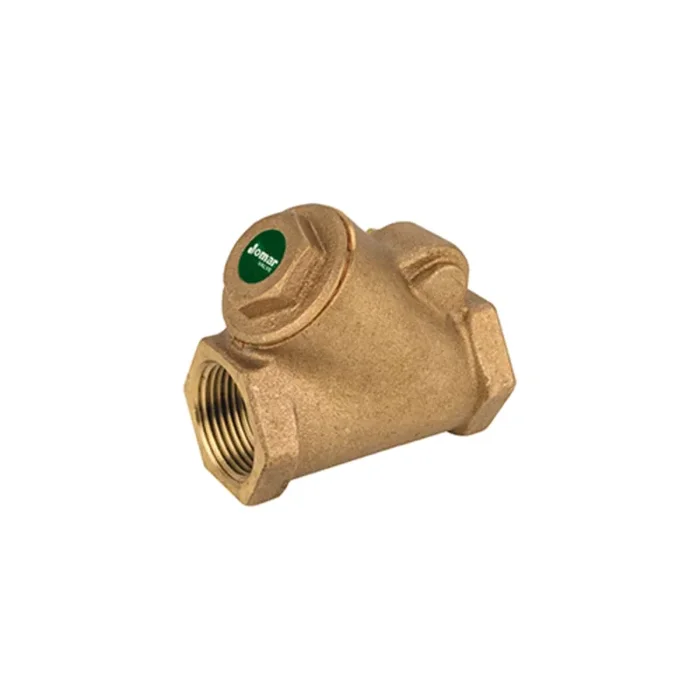

The Jomar 105-305G is a Y-pattern swing check valve designed for threaded connections. It is suitable for various applications in plumbing and industrial systems. This valve has a pressure rating of Class 150 and a WOG rating of 300. It is compliant with low lead standards and features a spring actuator for reliable operation.
- Can be installed in both vertical and horizontal positions
- Constructed with bronze body and brass/PTFE trim
- Low lead content for safety compliance
Product Highlights
This valve is effective for preventing backflow in piping systems, ensuring the flow of fluids in one direction.
Product Information
Standard Information
- Manufacturer: JOMAR
- Nominal Size: 1 inch
Technical Specifications
- Actuator Type: Spring
- Body Material: Bronze
- Trim Material: Brass/PTFE
- Inlet to Outlet Length: 3.4 inches
- Top to Inlet Center: 2.28 inches
- Pressure Class: 150 lb
- Low Lead Compliance: Yes
- Series: T-511G
