Product Description

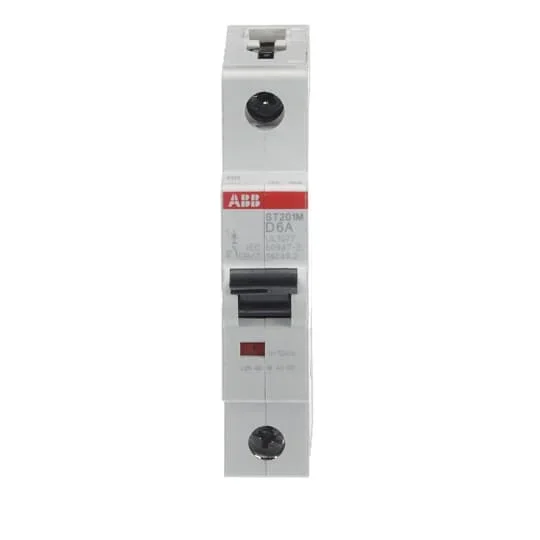

The ABB ST201M-D6 is a miniature circuit breaker designed for reliable performance in various applications. This device has a rated current of six amps and operates on a single pole. It features a thermal magnetic trip curve D with an interrupt rating of ten kiloamperes, ensuring effective protection against overloads.
- Voltage compatibility of up to two hundred seventy-seven VAC and sixty VDC.
- DIN rail mounted for easy installation and maintenance.
- Finger safe design with multifunction terminals for enhanced user safety.
Product Highlights
This miniature circuit breaker is ideal for supplementary protection, meeting UL 1077 and CSA 22.2 No. 235 standards.
Product Information
Standard Information
- Brand: ABB
- Manufacturer: ABB Low Voltage
Technical Specifications
- Voltage: 277 VAC, 60 VDC
- Amperage: 6 Amp
- Number of Poles: 1 Pole
- Actuator: Toggle
- Ambient Temperature Rating: -25 to 55 degrees C
- Interrupt Rating: 10 kAIC
- Housing Material: Robust Thermoplastic
- Environmental Conditions: 28 Cycles with 90 – 96% at 55 C and 95 – 100% at 25 C
